S-5! S-5-H90 Metal Roof Clamp
Have questions?
Feel free to get in touch
Couldn't load pickup availability
S-5!, Clamp, Size H-90, fits Metal Roof Profiles with Horizontal Seam greater than 0.65”, S-5-H90

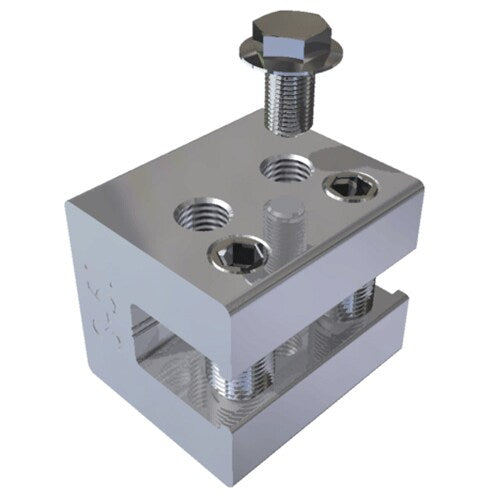

The S-5-H90 is a one-piece clamp that was developed to securely and cost-effectively accommodate metal roof panels with a horizontal seam wider than 0.65″ (5/8″).
The S-5-H90 is a one-piece clamp that was developed to securely and cost-effectively accommodate metal roof panels with a horizontal seam wider than 0.65" (5/8"). Turning the clamp 90 degrees so that the bolt hole side is facing up, slip the clamp on to the panel seam and tighten the setscrews. The S-5-H90 can be used with ColorGard or other snow retention systems. The S-5-H90 clamp comes complete with two [2] 3/8"x 24 x 0.80" round nose set screws and one [1] M8-1.25 x 16mm Hex Flange Bolt. All hardware is stainless steel. Installing solar, satellite dishes or other lighter duty products? The S-5-H90 mini seam clamp may be the best choice.
