S-5! Mini Metal Roof Clamp, S-5-N Mini

In stock
SKU: GT S5 S-5-N MINI
MPN: S5NMINI
Dimensions:
Weight: 0.25 lb
$8.04

Need More Information

Have a question about a product or need help with system design

Request Infomation

Solar Racking Direct Attachment; Type: Seamed Roof Clamp; Application: Pitched Roof - Rail-Based

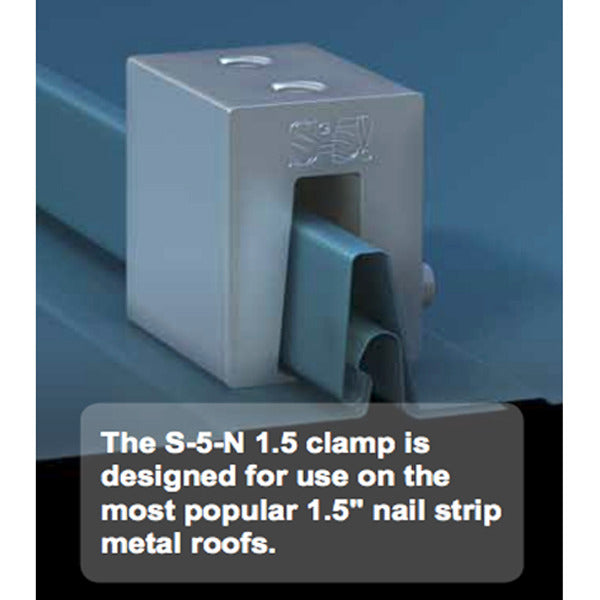

S-5-N and S-5-N Mini clamps were designed with patented S-5!® zero-penetration technology for application on the popular 1" nail strip metal roof profiles: Taylor Metals' Easy Lock™, ASC Building Products' Skyline Roofing®, McElroy Metals' Meridian, and New Tech Machinery's FF100, and roofing types with similar profiles. The clamp boasts a wider throat that accommodates most nail strip profiles, minimizing the need to field crimp. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process—there is no longer a need to hold the clamp in place while setscrews are tensioned. The combination of these two features allows the clamp to sit straighter on the seam. Nail strip profiles just got a whole lot simpler!

The S-5-N clamp has been tested for load-to-failure results on most major brands of 1" nail strip profiles of standing seam roofing. The independent lab test data found below can be used for load-critical designs and applications. S-5! holding strength is unmatched in the industry.
Product Documents
Type: Seamed Roof Clamp
Application: Pitched Roof - Rail-Based
