Home » Connectors » Mechanical Lug - Aluminum; 2/0 AWG; 1-15/32 In.
ILSCO CORP

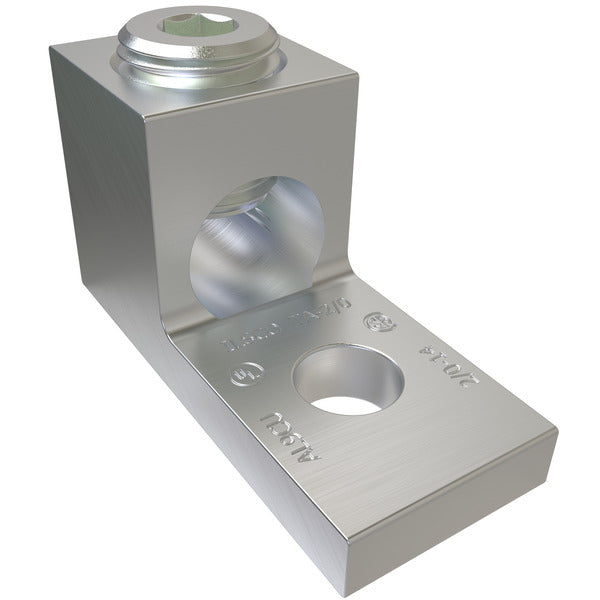

Mechanical Lug - Aluminum; 2/0 AWG; 1-15/32 In.

In stock
SKU: GT ILSCO TA2/0
MPN: TA20
Dimensions:
Weight: 3.2 lb
$584.26

Need More Information

Have a question about a product or need help with system design

Request Infomation

Lugs & Split Bolts - Mechanical Lugs; Gauge: 2/0 AWG; Length: 1-15/32 In.; Material: Aluminum; Number of Conductors: 1 Conductor; Type: Tap Lugs; Approvals: UL 453-G, UL 486A, UL 486B, CSA

Features:

Manufactured from high strength 6061-T6 aluminum alloy.

Electro-Tin plated.

Suitable for use in circuits rated at 35 KV or less; proper high voltage spacing and insulation techniques must be used.

Suitable for use with either copper or aluminum conductors.

Chamfered wire entry provides ease of installation.

CSA Certified.

Rated to 90° C.

  • Manufactured from high strength 6061-T6 aluminum alloy.
  • Electro-Tin plated.
  • Suitable for use in circuits rated at 35 KV or less; proper high voltage spacing and insulation techniques must be used.
  • Suitable for use with either copper or aluminum conductors.
  • Chamfered wire entry provides ease of installation.
  • CSA Certified.
  • Rated to 90° C.
  • Package Size - 100 Per Pack
Product Documents
Gauge: 2/0 AWG
Length: 1-15/32 In.
Type: Tap Lugs
Material: Aluminum
Number of conductors: 1 Conductor
Approvals: UL 453-G, UL 486A, UL 486B, CSA
Package size: 100 Per Pack
