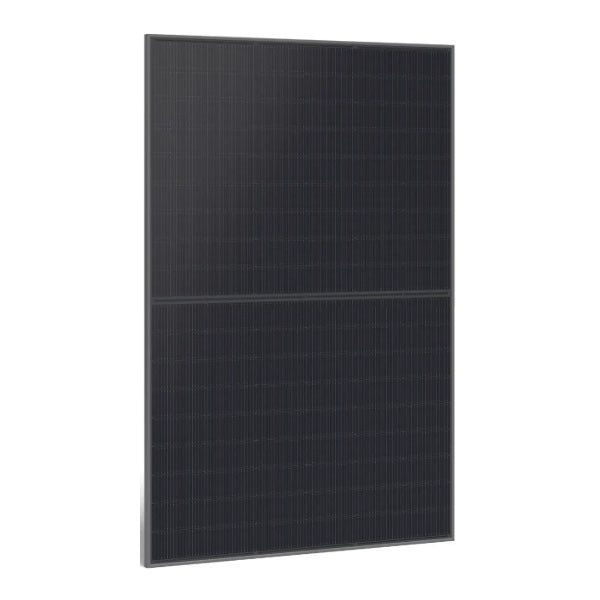

JA Solar 440W 108 Half-Cell N-Type Black Bifacial Solar Panel, JAM54D41-440/MB
Need More Information
Have a question about a product or need help with system design
Request Infomation
Couldn't load pickup availability
Voltage, rating: 1500 V
Current, rating: 30 A
Frame, color: Black
Cells per module: 108
Dimensions: 1722 L x 1134 W x 30 H mm
Panel, tech: N-Type
Panel, frame mm: 30
Panel, backsheet material: 1.6mm Back Glass
Panel, cells: 108
Panel, connector: QC 4.10-351/ MC4-EVO2
Panel, output cable: 4mm2(IEC), 12 AWG(UL)
Panel, efficiency: 22.5
Panel, open circuit volts: 39.38
Panel, short circuit amps: 13.85
Panel, max power volts, vmpp: 33.37
Panel, max power amps, impp: 13.18
Panel, max system volts: 1500
Panel, series fuse amps: 30
Panel, temp coeff, pmpp: -0.29
Panel, temp coeff, voc: -0.25
Panel, fire class type: Type 38
Weight: 21.5 kg
Approvals: IEC 61215, IEC 61730, UL 61215, UL 61730, ISO 9001: 2015 Quality management systems, ISO 14001: 2015 Environmental management systems, ISO 45001: 2018 Occupational health and safety management systems, IEC 62941: 2019 Terrestrial photovoltaic (PV) modules - Quality system for PV module manufacturing
Series: Deep Blue 4.0 Pro
Watts: 440
Small to medium sized items ship through FedEx. It typically takes between one and two business days for handling and between two and five days in transit. Transit time depends on how close you are to a warehouse. See the Will Call shipping option for warehouse locations.
If you need quicker shipping please email / call and we can do FedEx 2 day. info@ware.solar / (801) 899-6285
Shipping and handling:
0 lb - 14.99 lb: $24.15
15 lb - 25.99 lb: $28.63
26 lb - 34.99 lb: $34.33
35 lb - 44.99 lb: $62.29
45 lb - 69.99 lb: $96.42
70 lb - 84.99 lb: $114.89
85 lb - 99.99 lb: $138.60
100 lb - 144.99 lb: $198.94
145 lb - 179.99 lb: $239.74
180 lb - 199.99 lb: $255.74
200 lb - 220.99 lb: $270.74
Rails over 10' need to ship through an LTL carrier
Rails over 10' and under 13'
$448.55 - 0 lb - 200 lbs
$460.54 - 200.1 lb - 665 lb
$486.65 - 665.1 lb - 1160 lb
Rails over 13.1' and 15'
$579.01 - 0 lb - 400 lb
$615.40 - 400.1 lb - 720 lb
$636.37 - 720.1 lb - 840 lb
Save on shipping by combining the rails and panels on the same order.
These items need to ship through an LTL carrier. Includes liftgate service.
$406.04 - 0 lb - 600 lb
$482.4 - 600.1 lb - 1200 lb
$585.25 - 1200.1 lb - 2000 lb
$662.39 - 2000.1 lb - 2500 lb
Save on shipping by combining the panels and rails on the same order.
Will Call warehouse locations:
Arlington TX, Fort Lauderdale FL, Fontana CA, Las Vegas NV, Millstone NJ, Orlando FL, Sacrament CA, Tampa FL
