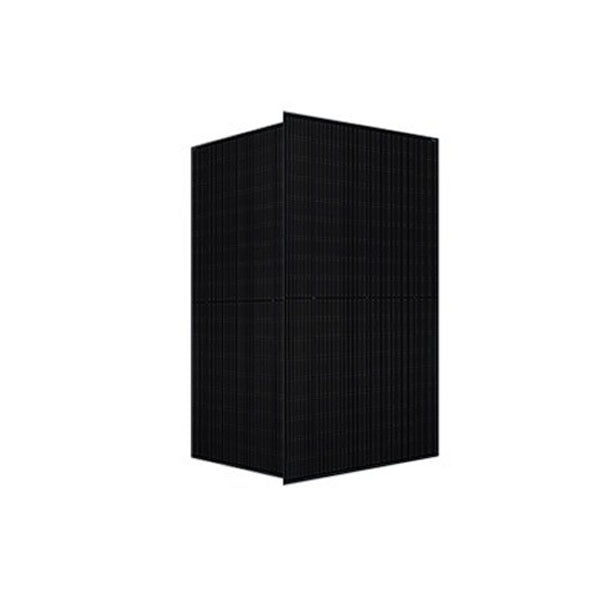

JA Solar 405W 108 Half-Cell 1500V BLK/BLK Solar Panel, JAM54S31-405/MR
Need More Information
Have a question about a product or need help with system design
Request Infomation
Couldn't load pickup availability
JA Solar, 405W PV Module, MC4-EVO-2, 30mm Black Frame/Black Back-Sheet, BOB, 108 ½ 11BB Mono-Perc Cells, 25A Max Fuse, 1000Vdc, 378.3 W PTC, 25/25 Warranty, JAM54S31-405/MR
All Open Box Item sales are final and sold as-is. Soligent makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Open Box Items are not eligible for returns, refunds, or exchange, and are exempt from the Soligent RMA policy. Open Box items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer-provided warranty is Purchaser’s sole responsibility.
Voltage, rating: 1500 V
Current, rating: 25 A
Material, frame: Aluminum
Frame, color: Black
Cells per module: 108
Dimensions: 1722 L x 1134 W x 30 H mm
Panel, tech: PERC
Panel, frame material: Aluminum
Panel, frame mm: 30
Panel, cells: 108
Panel, connector: QC 4.10-35/MC4-EVO2A
Panel, output cable: 4mm2 12AWG
Panel, watts ptc: 306
Panel, efficiency: 20.7
Panel, open circuit volts: 37.23
Panel, short circuit amps: 13.87
Panel, max power volts, vmpp: 31.21
Panel, max power amps, impp: 12.98
Panel, max system volts: 1500
Panel, series fuse amps: 25
Panel, temp coeff, pmpp: -0.35
Panel, temp coeff, voc: -0.275
Panel, fire class type: Type 1
Weight: 43 Lbs.
Approvals: IEC/UL 61215, IEC/UL 61730, ISO 9001: 2015, ISO 14001: 2015, ISO 45001: 2018, IEC 62941: 2019
Series: DEEP BLUE 3.0 Light
Watts: 405
