Heyco M3234GBS-SM Solar Masthead II Cordgrips

In stock
SKU: GT HEYCO M3234GBS-SM
MPN: M3234GBSSM
Dimensions:
Weight: 0.17 lb
$378.47

Need More Information

Have a question about a product or need help with system design

Request Infomation

Cables & Connectors - Cord Grip; Type: Liquid Tight; Size: 0.75 In.; Number of Holes: 3 Hole; Diameter, Hole Clearance: 1.04 (26.4) In. (mm); Wire Type: PV 1000|Use-2; Material: Nylon; Color: Black; Approvals: UL, CSA

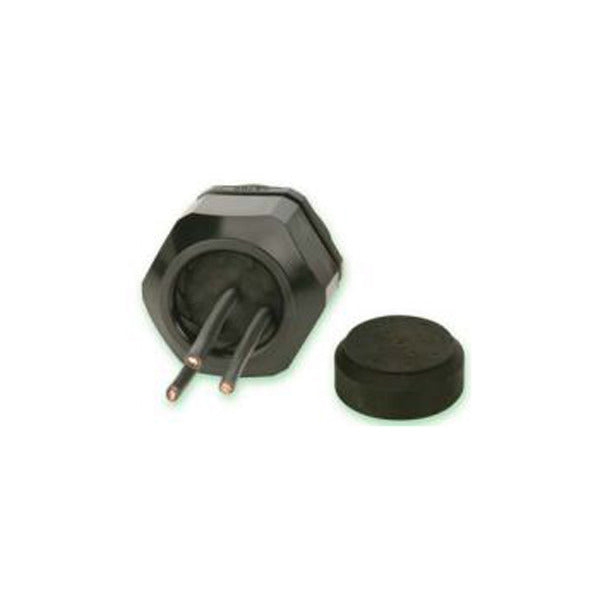

Heyco Solar Masthead II Cordgrips

Heyco Tite Solar Masthead, Gland 3-Hole 3/4

"

Skinned-over glands in the Solar Masthead II Cordgrips offer flexibility to use from 1 to 31 of the available holes while still providing a liquid tight seal around the wire.

• Designed for solar rooftop installations.

• Provides a watertight seal for PV module output leads to inverters.

• Secures input PV leads from solar panel array strings to fuse holder hookup within solar combiner boxes.

• Eliminates the need for combiner box in residential rooftop solar applications when appropriate threaded adaptor is used.

• Generous wrenching flats for ease of assembly.

• No disassembly required for installation.

• UV resistant nylon construction with TPE or Buna N Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.

• Contact Heyco for other sizes and gland configurations.

• Patent Pending

• Solar Masthead II Cordgrips provided with assembled metal locknut.

  • Package Size - 100 Per Pack
Product Documents
Type: Liquid Tight
Size: 0.75 In.
Number of holes: 3 Hole
Diameter, hole clearance: 1.04 (26.4) In. (mm)
Wire type: PV 1000|Use-2
Material: Nylon
Color: Black
Approvals: UL, CSA
Package size: 100 Per Pack
