Home » Grounding Bushing; Split Threaded; 3/4 In.; Insulated; Die Cast Zinc
BRIDGEPORT FITTINGS

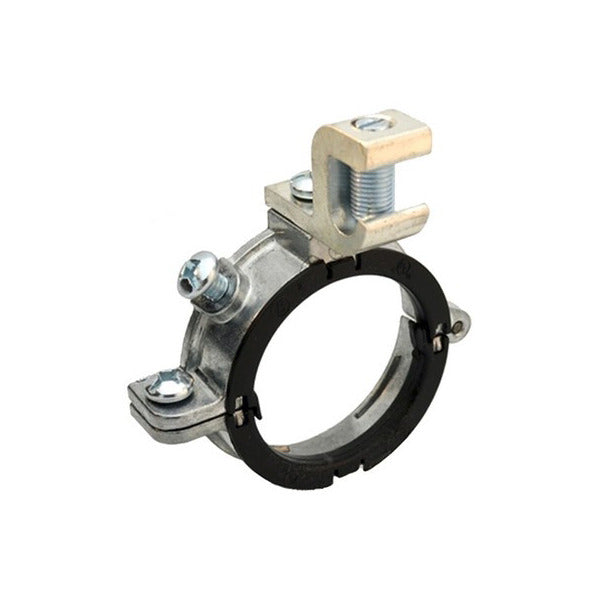

Grounding Bushing; Split Threaded; 3/4 In.; Insulated; Die Cast Zinc

In stock
SKU: GT BPT SGB382CL
MPN: SGB382CL
Dimensions:
Weight: 21 lb
$1,831.00

Need More Information

Have a question about a product or need help with system design

Request Infomation

Grounding Bushing; Type: Split Threaded; Size: 3/4 In.; Throat Type: Insulated; Material: Die Cast Zinc; Finish: Ball Burnished Mirror Smooth; For Use With: Rigid/IMC/EMT Conduit

Application:

Used in situations where wires have already been pulled through conduit or EMT fittings, and an insulated Grounding bushing is required. Grounding lug; aluminum alloy 60610-T6. Rated 150 Degree C. cULus listed to UL514B and UL467 specifications. Patented. Now featuring UV Stabilized Insulators and Stainless Steel Hardware, perfect for solar and other outdoor installations.

  • Package Size - 100 Per Pack
Product Documents
Type: Split Threaded
Size: 3/4 In.
Throat type: Insulated
Material: Die Cast Zinc
Finish: Ball Burnished Mirror Smooth
For use with: Rigid/IMC/EMT Conduit
Material, lug: Tin Electroplated
Temperature, rating: 150 °C
Wire size: 14 Sol to 4 Str AWG
Length: 0.73 In.
Diameter: 1-1/4 In.
Approvals: UL (CANADA AND US), UL 467, UL 514-B
Series: SGB Series
Package size: 100 Per Pack
