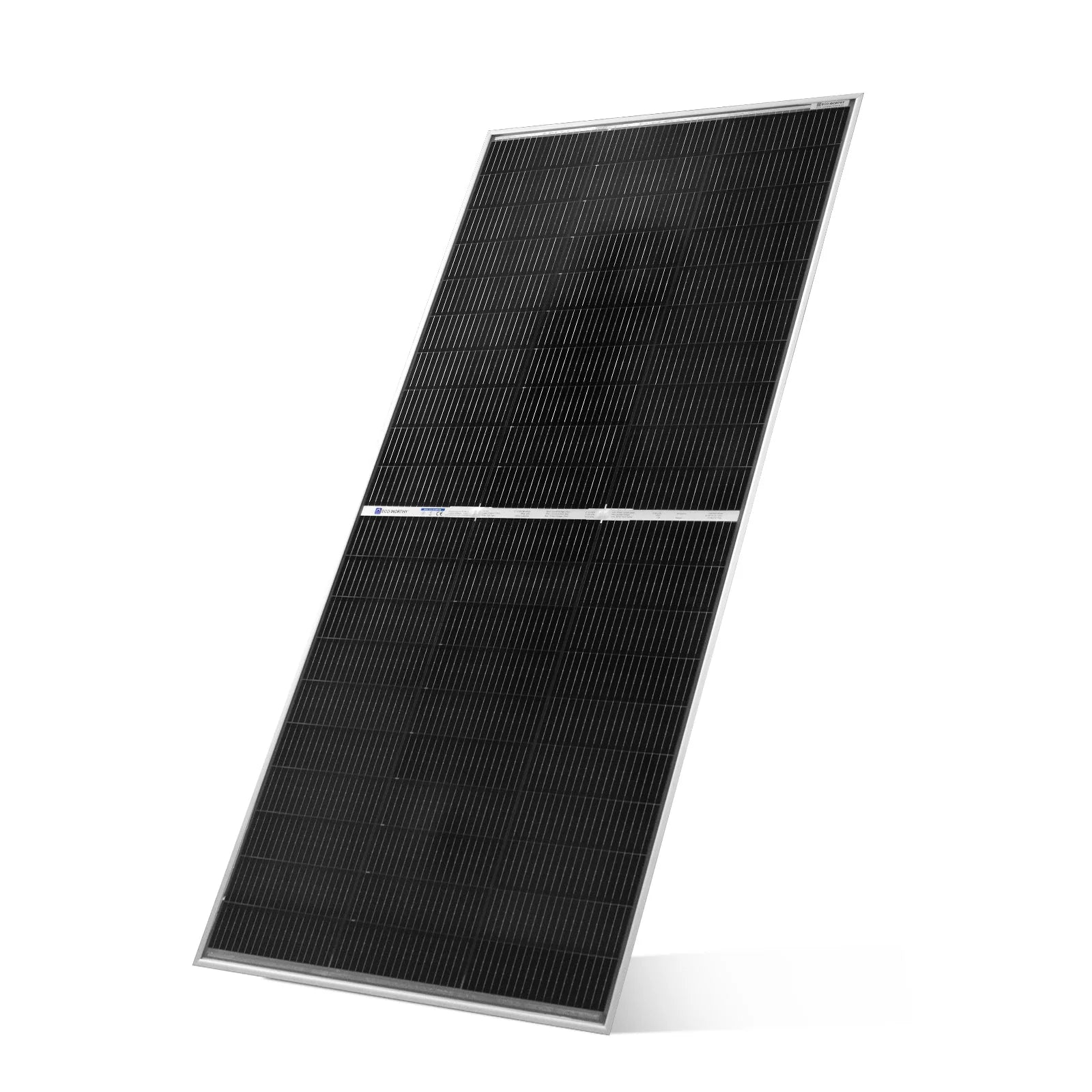

Eco-Worthy 195 Watt N-Type Bifacial Solar Panel | 25% High-Efficiency 18BB Solar Cell for Home Solar, Off-Grid RV & Boat
Free Shipping on these panels!

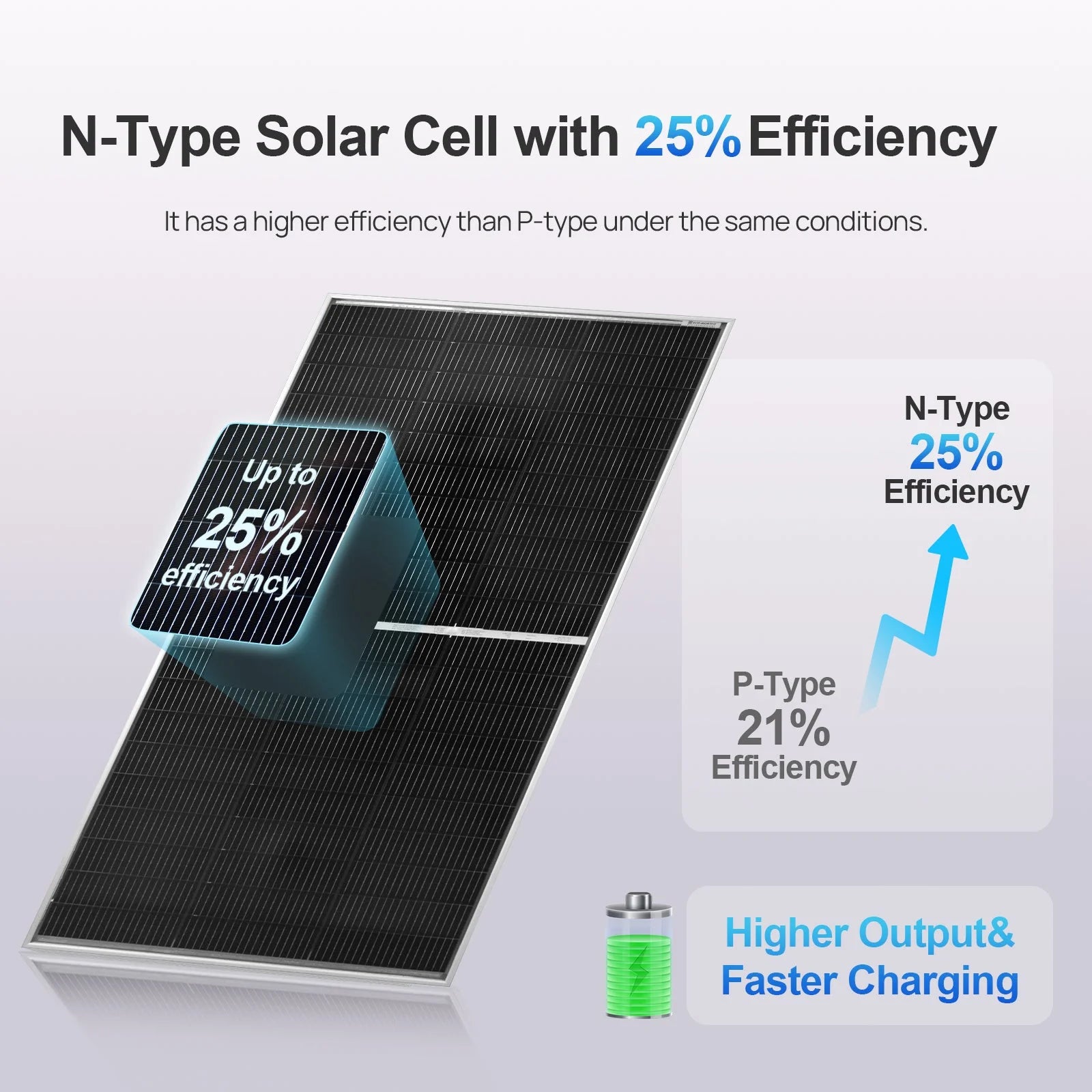

Engineered with cutting-edge 18BB (Busbar) N-type solar cells, this high-efficiency panel delivers a massive 25% conversion efficiency. Unlike traditional P-type panels, N-type technology offers superior high-temperature resistance, meaning you get maximum power generation even on the hottest summer days.
Key Features & Benefits
-

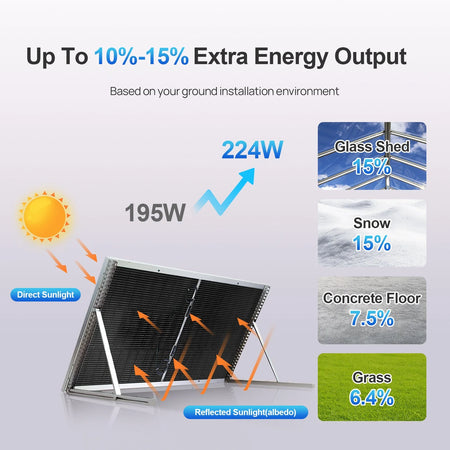

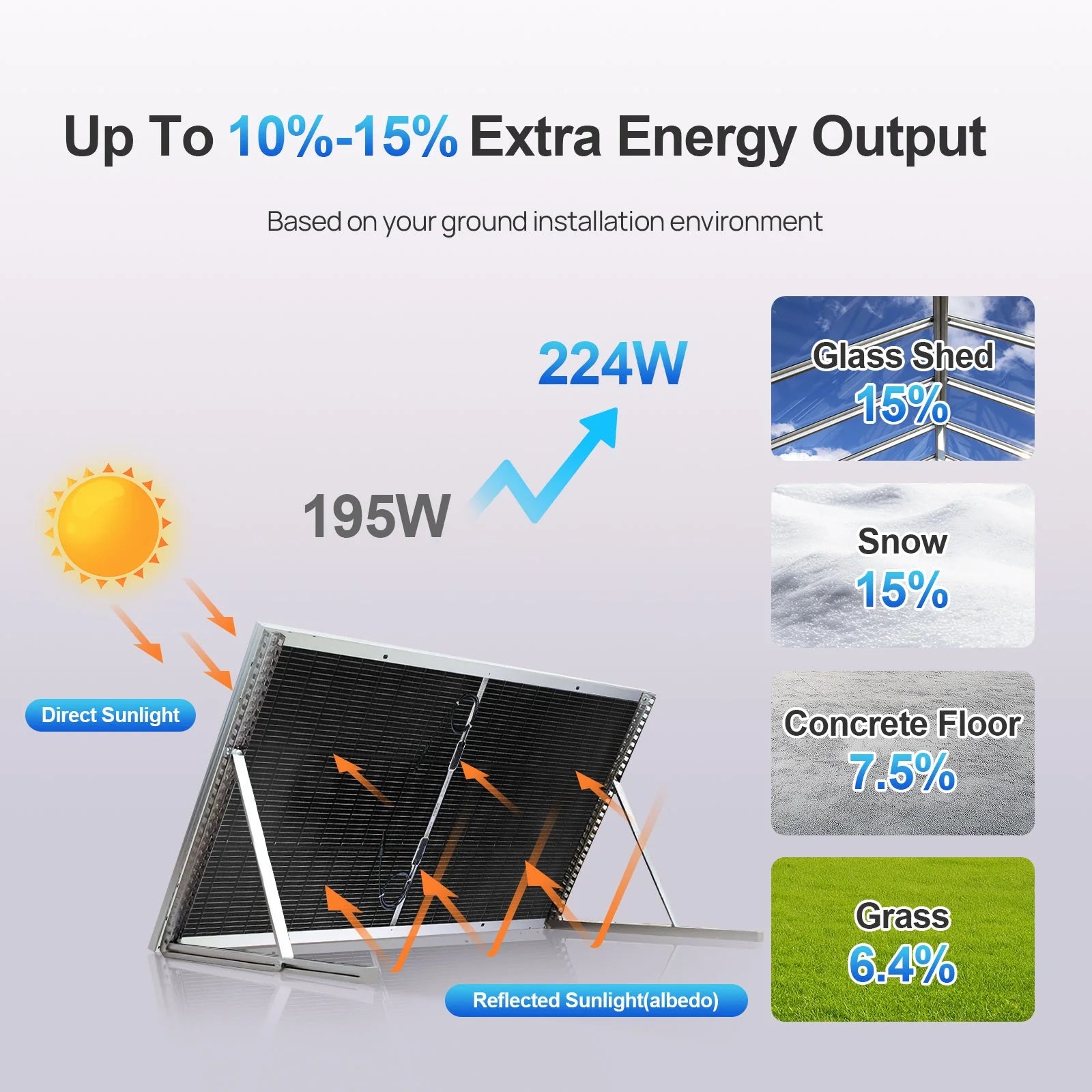

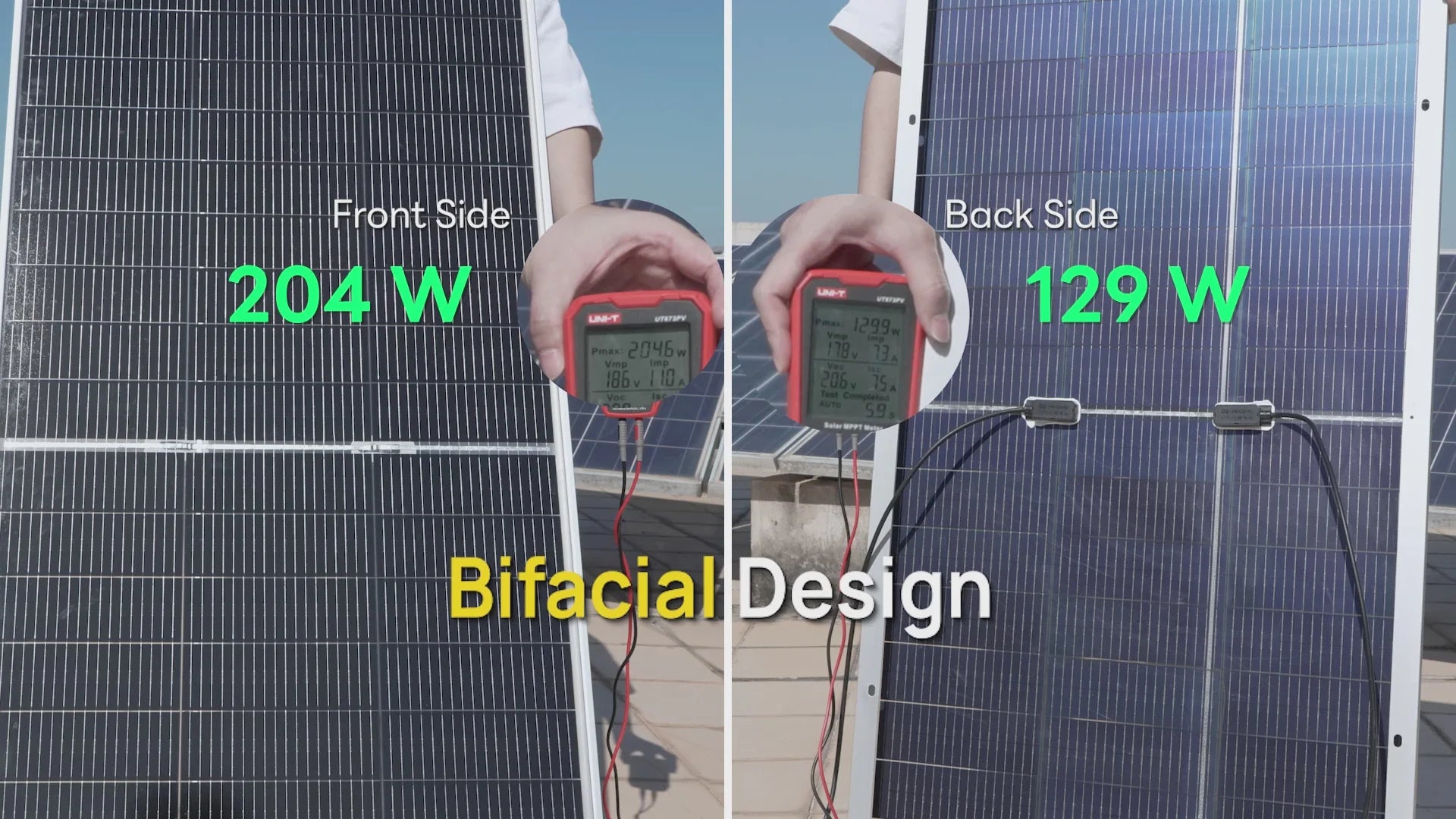

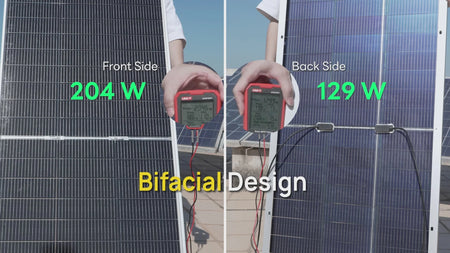

Dual-Sided Power Generation (+15% Energy Yield): Maximize your footprint. By capturing sunlight from both the front and back, this bifacial solar panel boosts your total energy yield by up to 15%. That’s an extra 100+ Watt-hours (WH) daily per panel under standard 4-hour sunlight conditions.
-
30-Year Lifespan & Premium Durability: Built to outlast the competition. Featuring heavy-duty tempered glass, a corrosion-resistant aluminum frame, and an IP68 waterproof rating, this panel is rated for 30 years of stable use—lasting a full decade longer than standard P-type alternatives. Dual built-in diodes provide advanced bypass protection and heat management.
-
Beginner-Friendly, Plug-and-Play Installation: No professional tools required. The panel comes equipped with pre-drilled mounting, grounding, and drainage holes, making DIY installation fast and foolproof.
-
Versatile Off-Grid Applications: The perfect power solution for marine/boats, RVs, camper vans, rooftops, farms, and residential backup systems.
💡 Pro-Tip for Maximum Yield: To unlock the full 15% bifacial bonus, mount this panel over highly reflective surfaces (such as snow, sand, light-colored gravel, or glass) using a tilt mount or solar tracker.
Specifications:
-
Power Output: 195 Watts
-
Cell Type: N-Type Silicon (18 Busbars)
-
Efficiency: 25%
-
Dimensions: 58.86" x 26.18" x 1.38" (149.5 x 66.5 x 3.5 cm)
-
Weatherproof Rating: IP68 Waterproof
-
Shipping: Free Shipping Included
Technical Specifications: 195W N-Type 18BB Bifacial Solar Panel
| Rated Power | 195W | Solar Cell | Monocrystalline Silicon N-Type |
| Maximum/Peak Voltage (Vmp) | 20.2V | Open Circuit Voltage (Voc) | 21.2V ± 3% |
| Short Circuit Current (Isc) | 11.60A ± 3% | Maximum Current (Imp) | 9.65A |

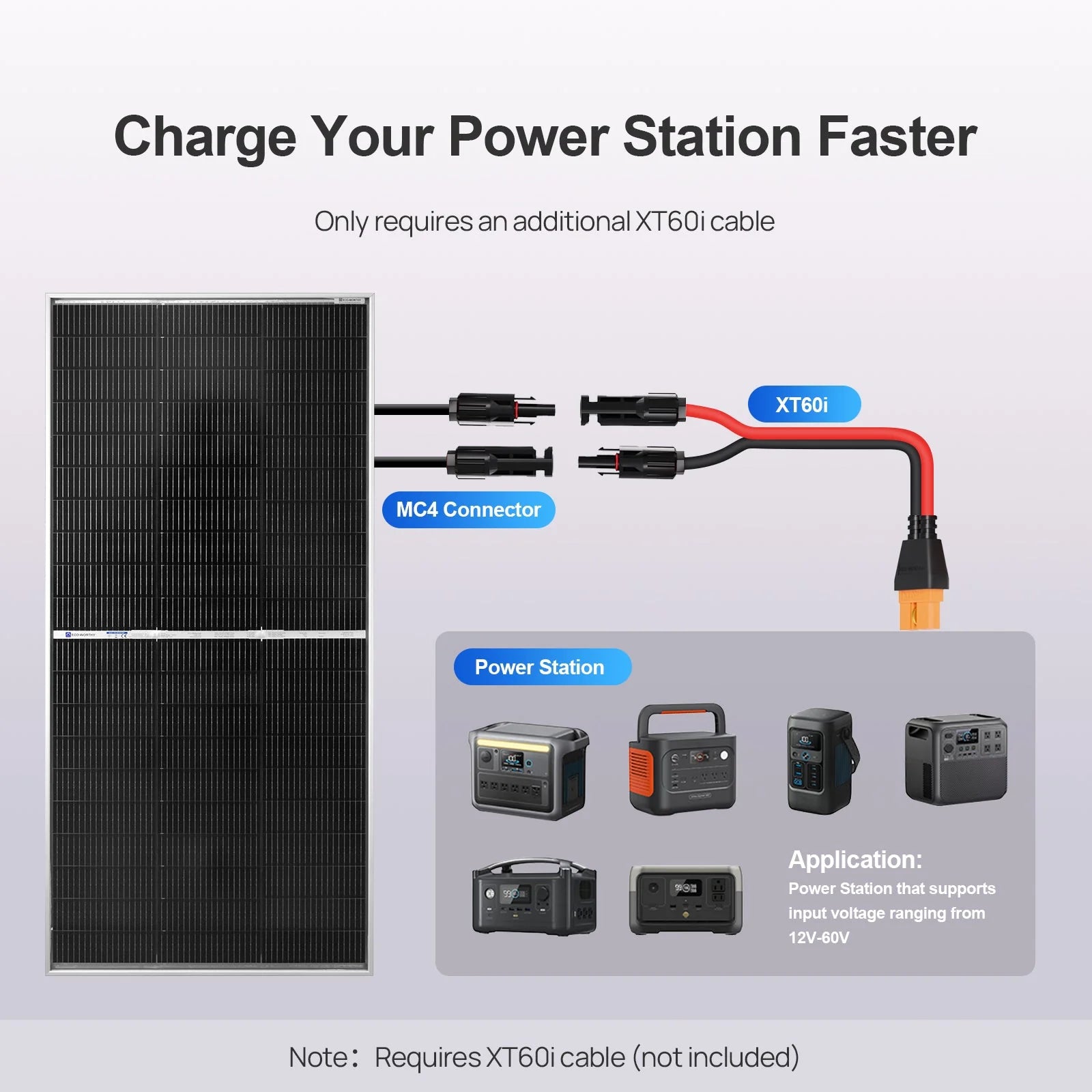

| Connector Type | MC4 | Module Efficiency (STC) | 19.60% |
| Temperature Coefficient of Voc | -(0.38 ± 0.01)% / °C | Temperature Range | -40°C ~ +80°C |
| Frame | Aluminum alloy frame | Weight | 10.5 kg / 23.15 lbs |
| Dimensions / Size | 58.86 x 26.18 x 1.37 in (1495 x 665 x 35 mm) | ||
