APsystems EZ1-LV 120V Plug-in Solar Microinverter
Need More Information
Have a question about a product or need help with system design
Request Infomation
Couldn't load pickup availability
Back ordered until Febuary. Pre-purchase available to guarantee order.

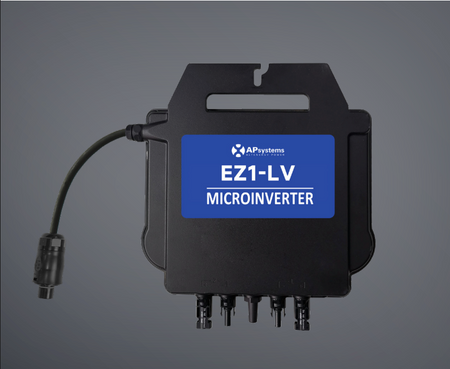

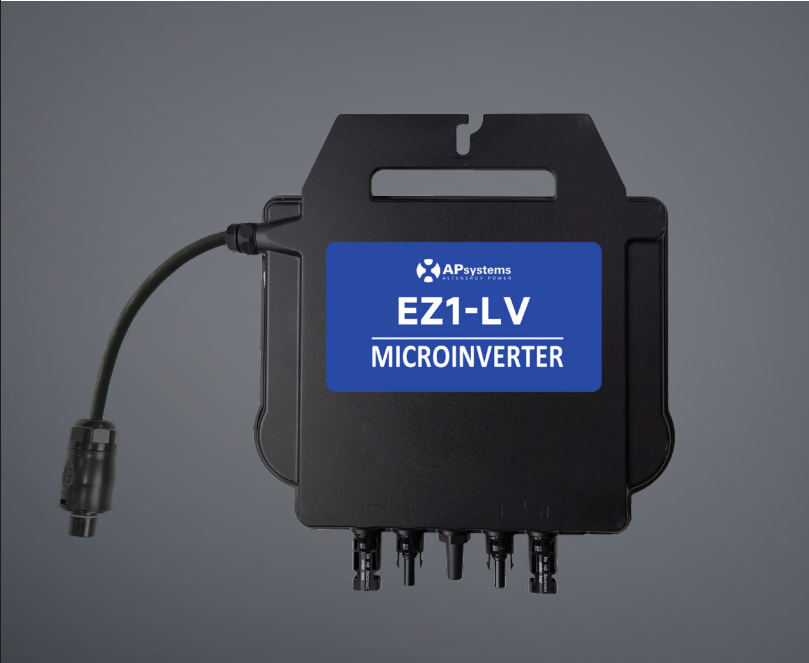

APsystems EZ1-LV
Wi-Fi Version for DIY
• One microinverter connects to two modules
• Max output power reaching 900VA
• Two input channels with independent MPPT
• High Input current to adapter to large modules
• Maximum reliability, Type 6
• Built in Wi-Fi and Bluetooth
• Safety protection relay integrated
• Dedicated for balcony and DIY systems
Product Features:
The EZ1-LV are APsystems 3rd generation of dual microinverters, they are dedicated designed for balcony and DIY systems, EZ1-LV microinverters have 2 input channels with independent MPPT and high input current and output power to adapt to today's larger power module.

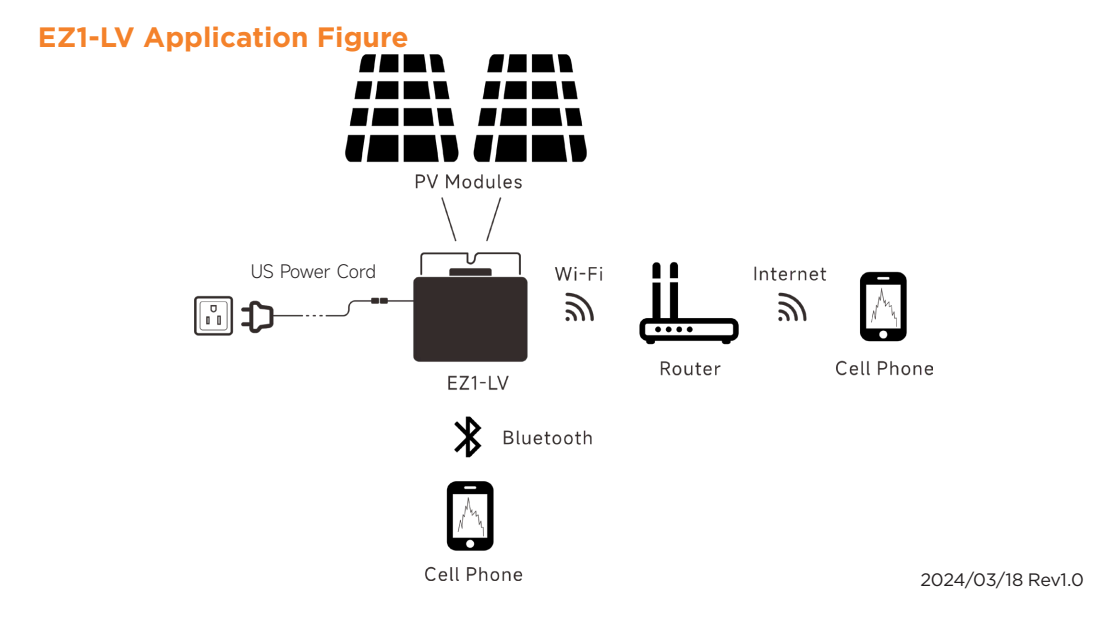

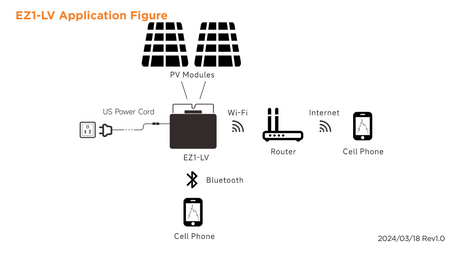

Users could directly connect to the EZ1-LV with their cell phones through Bluetooth and get the real-time data of the solar systems. Besides direct connection, EZ1-LV could also connect to a router through Wi-Fi and send data to cloud servers for remote monitoring.
Through an AC extension cable available from APsystems (optional), the EZ1-LV could be plugged into a socket and start output energy, truly easy and convenient grid connection
